Side Cars

Idea

Add additional functionality into an existing application, with minimal or zero code changes to the exiting application. Also, the package can be consume by any software - irrespective of the language or framework (heterogeneous) it is written in.

How?

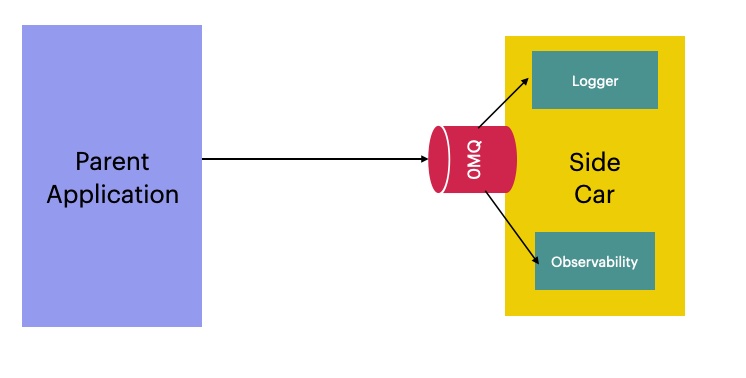

Using side cars pattern - : I/O( ZMQ) + Topic (intent) + Data( ProtoBuf) + Impl(Subscriber of topic).

DAPR framework from Microsoft Azure team – uses a similar design - runs side car. Dapr is a portable, event-driven runtime that makes it easy for developers to build resilient, micro service stateless and stateful applications that run on the cloud and edge and embraces the diversity of languages and developer frameworks.

We could use the Side Car for adding functionalities like resource monitoring, logging, log aggregation, configurations, observability (telemetry /feature trends) etc.. Once we get the sidecar installed - we could keep adding new functionality as it independently developed and deployed. The features in the sidecar could be turned on or off based on options.

Say as an organization: we decided to use cloud solutions for telemetry and internal tools decide to push data to the cloud - this solution might need a security layer - which would implement both gov and corp policies. This common implemenation of policies could be sitting inside the side cars and can be deployed on to all machine where the internal tools runs. And any update made to the policies would be transparent to the application - as the side cars would be independently deployed and maintained.

How is it different from a Microservice with REST API?

Microservice doesn’t really care about the client. But here the side car is tightly coupled and tracks everything about the main application – including say: killing the application if the resource used is above the threshold - so that the tool PC doesn’t require a restart.

Where should it be used?

Only for non-critical operation - as the latency will be high.

Reference:

• DAPR
• Blog
• MSSideCar
